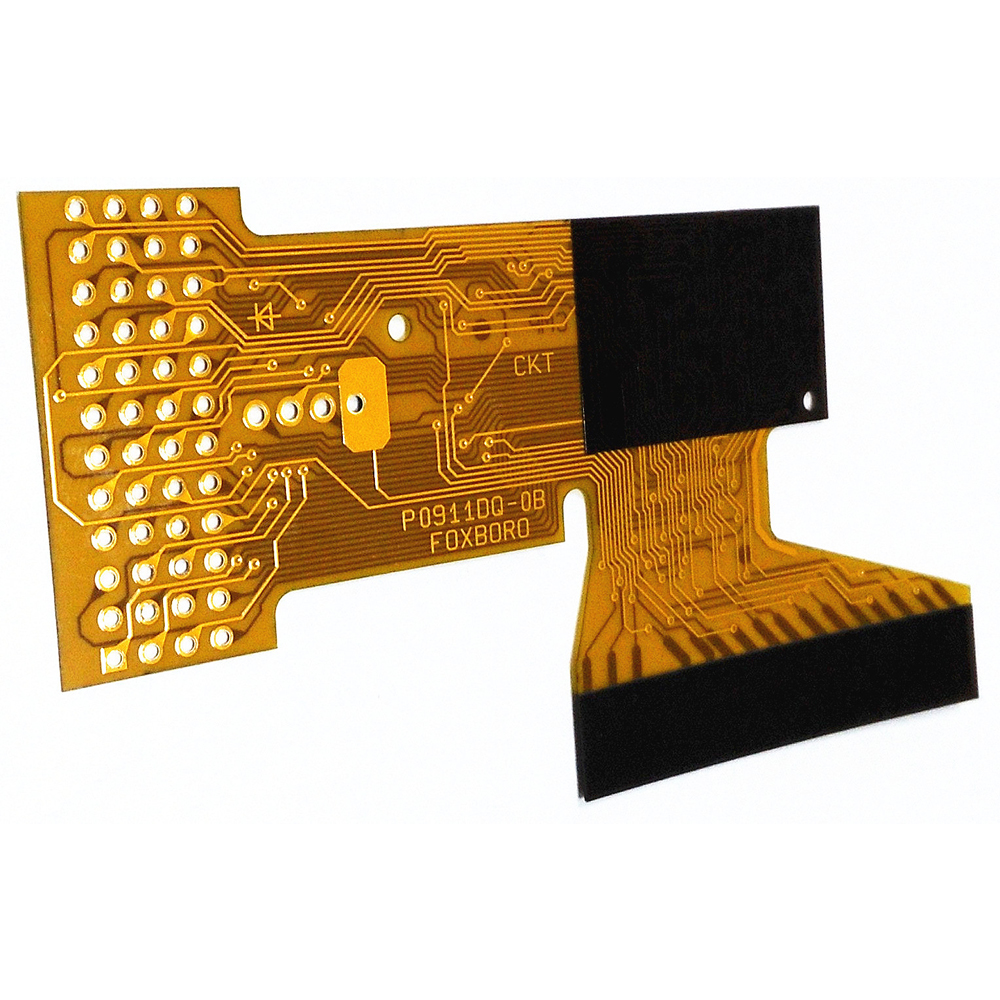

Flexible Printed Circuits Boards made their introduction into the electronics industry as substitutes for cable assemblies. They introduced a number benefits to designers such as reduced weight, reduced size and higher reliability, all at a low cost. As time has passed, the technology has gone through refinement. Today, Flexible PCBs are still used as replacement for cable assemblies, however their scope has evolved to the point of also being able to replace traditional Rigid PCBs. With the ability to mount components based on both SMT and through hole technology, available not only as single sided, but also as double sided THP and Multi-layer technology, flexible PCBs are today utilised in a multitude of applications.

Rigid-Flexible Printed Circuits Boards are a hybrid PCB manufactured by combining rigid PCB technology with Flexible PCB technology. The integration of these two technologies into one product enables a PCB assembly to be manufactured with a high level of integration, reducing assembly cost, improving reliability and offering a solution that can resolve technical and mechanical problems not addressed by other technologies on their own. Rigid-Flex PCBs are differentiated from “Flexible PCBs with stiffener” in that the stiffener does not have any electrical conductors.

The science of reliability, on-time delivery and competitive pricing. Shanxu PCB is committed to offering the highest quality printed circuit boards’ at the most competitive pricing. We aim to provide customer excellence on all orders whether you need a simple sample or a time-critical and technologically complex multi-layer printed circuit board product. Our highly specialized team can meet all your PCB needs.

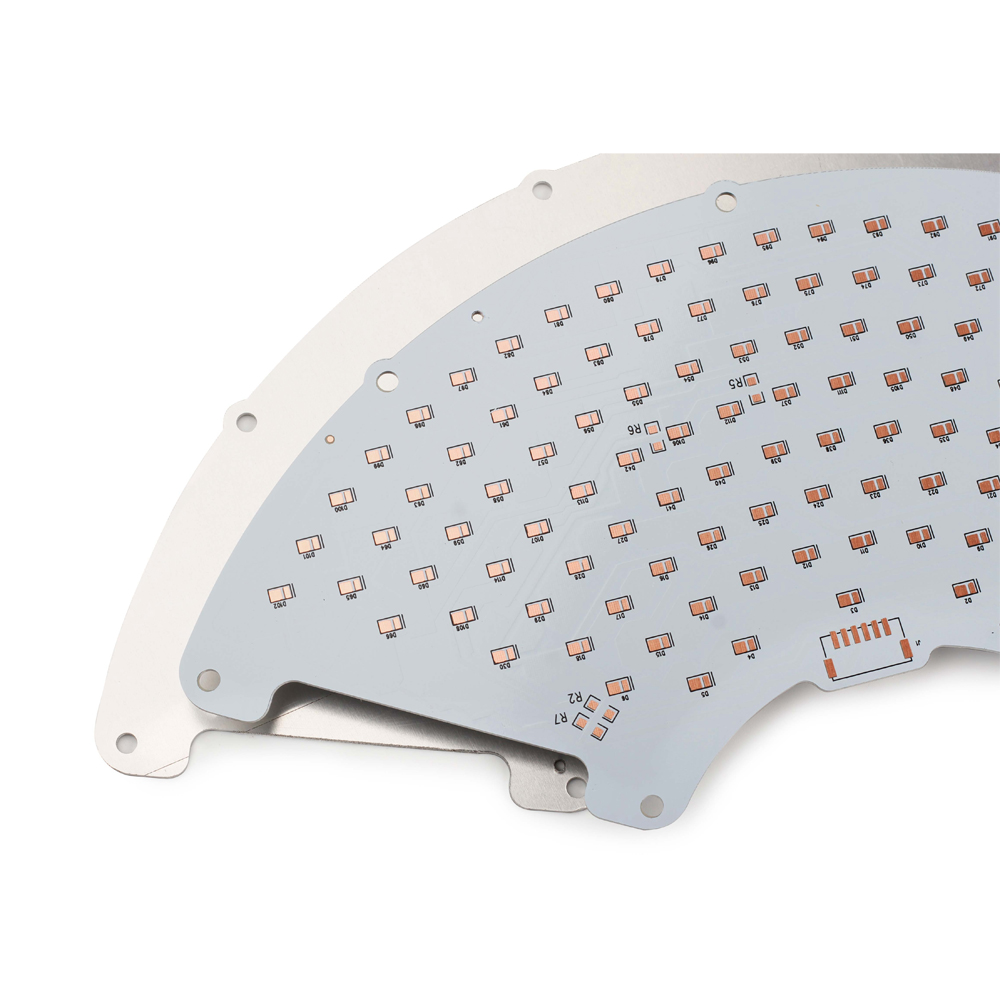

These materials are especially intended for circuit boards whose thermal dissipation needs are high. This technology, given its conditions, fits perfectly in the market of circuit boards for illumination (energy efficiency), signage, automotive, etc. The use of materials with different thermal conductivity values enables our customers to adapt their designs to determined conditions.

High frequency pcb, The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

The components are developing towards high speed, low consumption, small volume and high anti-interference. PCB design is an important stage of electronic product design. It can realize the connection and function between electronic components, and is also an important part of power circuit design. High frequency circuit has the higher integration and the higher layout density, so it is very vital how to make layout more reasonable and more scientific. PCB can realize the connection and function between electronic components and is also an important part of power circuit design. When the electrical schematic diagram has been designed, several functional plates shall be adopted according to the structural requirements and functional division, and the physical size and installation method of each functional plate PCB shall be determined. The convenience of debugging and maintenance, as well as shielding, heat dissipation and EMI performance shall also be considered. Engineers are required to determine the layout wiring plan, such as the key circuits, the signal lines, the details of wiring methods, and the wiring principles to be followed. Several stages of the PCB design process must be examined, analyzed, and modified. Only after the whole layout process is completed and examined through comprehensive rule inspection, can it be further processed.

Our company's review documents will be produced in accordance with our plate-making process rules, and we cannot handle any data design issues for you. Please review the data and place an order. Due to the irreversibility of PCB production, arrangements will be made two hours after payment, and data cannot be modified after production is arranged. Please make sure that the PCB file is correct to avoid unnecessary losses.
